EZ3045G PUMP by GENERAL PUMP (5335)

EZ3045G PUMP by GENERAL PUMP (5335)

$435.81
$435.81 $565.99
SAVE 23% Sold out

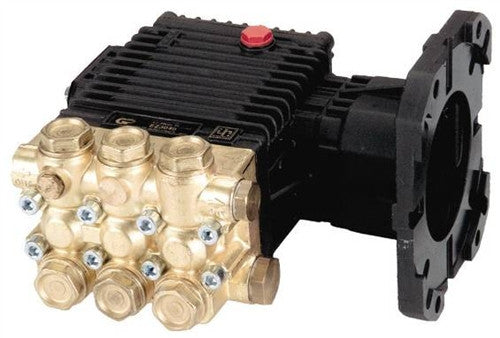

This EZ3045G General Pump features:

  • Solid ceramic plungers
  • Standard SAE J609 gasoline mounting flange for up to 13 hp engines
  • Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
  • Die-cast, anodized aluminum, oil-bath crankcase
  • Premium roller bearing
  • Unitized stainless steel inlet and discharge valves
  • Available in L left-handed version

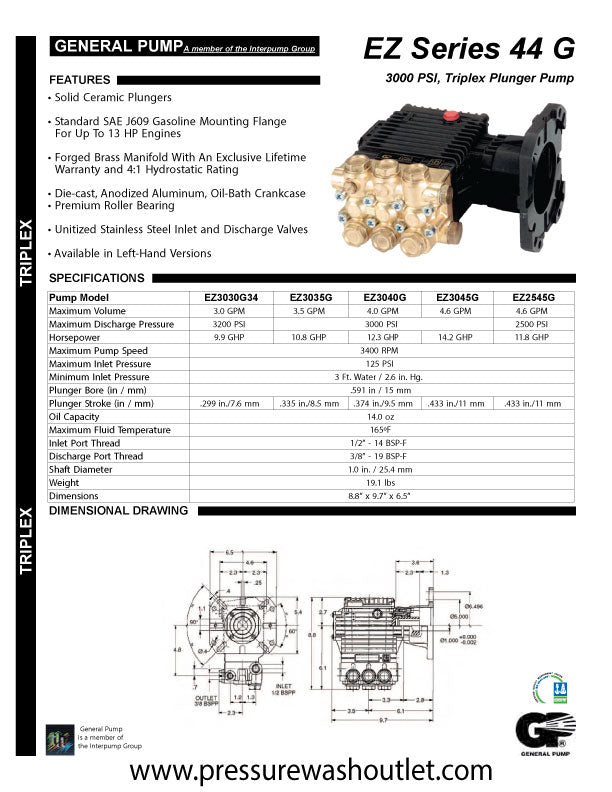

The EZ3045G is rated at:

Maximum Volume 4.6 gpm
Max. Discharge Pressure 3000 psi
Maximum Pump Speed 3400 rpm
Maximum Inlet Pressure 125 psi
Maximum Inlet Vacuum 3 ft. water (2.6 in Hg)
Bore .591 in / 15 mm
Stroke .433 in / 11 mm
Crankcase Oil Capacity 14.0 oz
Maximum Fluid Temperature 165°F
Inlet Port Thread 1/2-14 BSPP-F
Discharge Port Thread 3/8-19 BSPP-F
Hollow Shaft I.D. 1.0 in / 25.4 mm
Weight 19.1 lbs
Dimensions 8.8 x 9.7 x 6.5 in

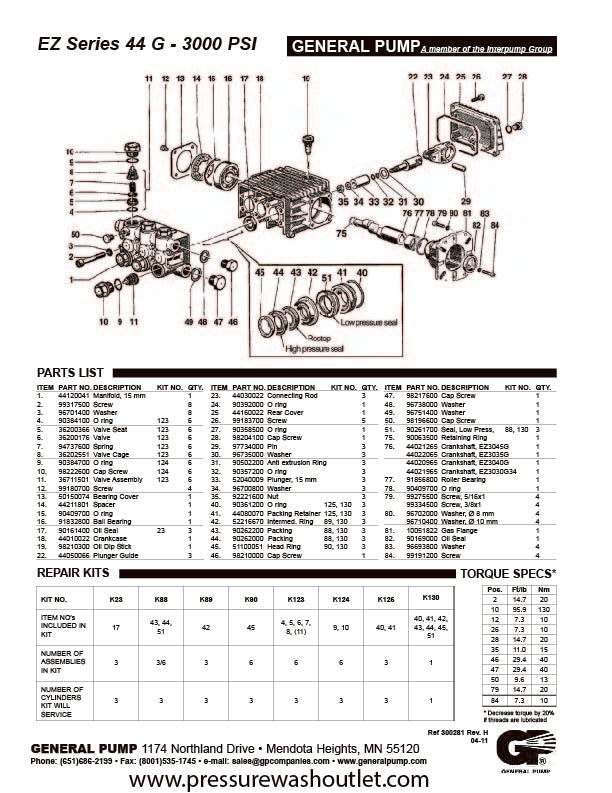

Repair Parts Available:

Repair Kit 23 - Piston Rod Oil Seal (1602)

Repair Kit 88 - Packing w Restop Ring (1615)

Repair Kit 90 - Head Rings (3874)

Repair Kit 123 - Valve (1616)

Repair Kit 124 - Valve Cap (3868)

Repair Kit 125 - Packing Retainer (3875)

Repair Kit 130 - Packing Assembly (3876)
